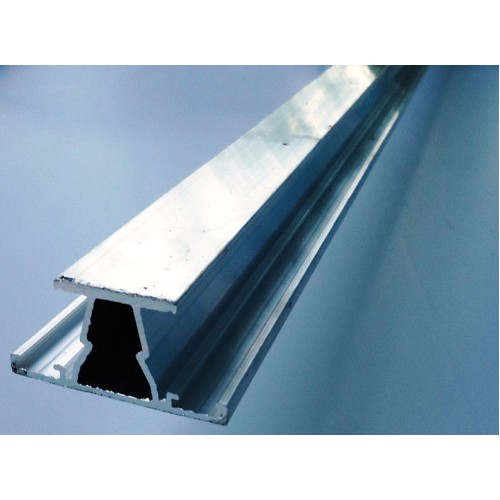

The rails are aluminum extrusions, light type, which are designed to support photovoltaic frames. The aluminum profiles have two (2) horizontal channels, one (1) from every side. Into the horizontal channels cable clips are fastened. It also has two (2) lateral canals, one in every side that is used by the clamps.
The rail width is 62mm, while the height of 27mm. The rail is available in two length of 4.5 m and 6,2 m for the purpose of flexibility and to limit losses. The main advantages of rail are:
a) It provides flexibility in positioning the clamp set, since the set fixed directly to any point of the rail.
b) Provides flexibility to connect two (2) separate rails.
c) They are attached easily on the bases, by using self-drilling screws.
d) PV panels are attached anywhere on the rail and are fastened by clamp set in any point we want.
e) Provides great convenience by keeping the cables altogether connected.
f) It is a light aluminum construction, without adding unnecessary weight on the roof.

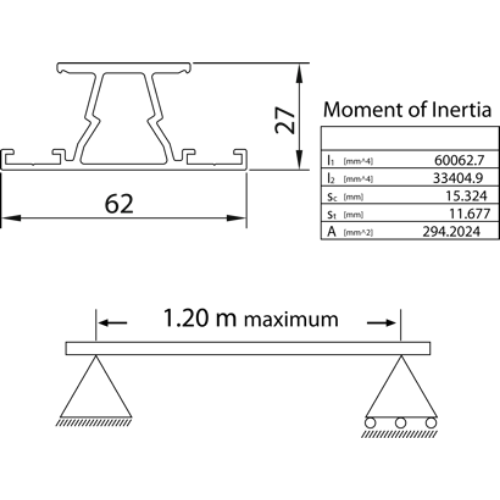

g) Presents a great integral strength and according to its design, bases can be arranged per 1,2 m certified, as shown in the Figure.
Packaging of Product
The Rail Aluminum System Support is available in packs of three (3) rails.
Code 150.1120 Aluminum Rail 4.5m
Code 150.1140 Aluminum Rail 6.2m
- Stock: In Stock
- Model: 150.1120, 150.1140
